Custom Speaker Voice Coil Manufacturer
OEM Voice Coil Solutions For Professional Audio Brands, Speaker Factories And Repair Markets Worldwide.
Custom Diameter:Tailored specs from micro-drivers to massive 6" woofers.
Premium Formers:High-performance Kapton (TIL) and rigid Aluminum options.
Advanced Wire:High-conductivity Pure Copper and ultra-light CCAW wire technologies.
Rapid Sampling:Fast-track physical mockups engineered in 5-7 business days.
Direct Factory Support:Low-risk flexible MOQs backed by direct industrial pricing.
Complete Voice Coil Product Range
Engineered to deliver strict parameter consistency, continuous high power threshold, and precise electro-acoustic responses.

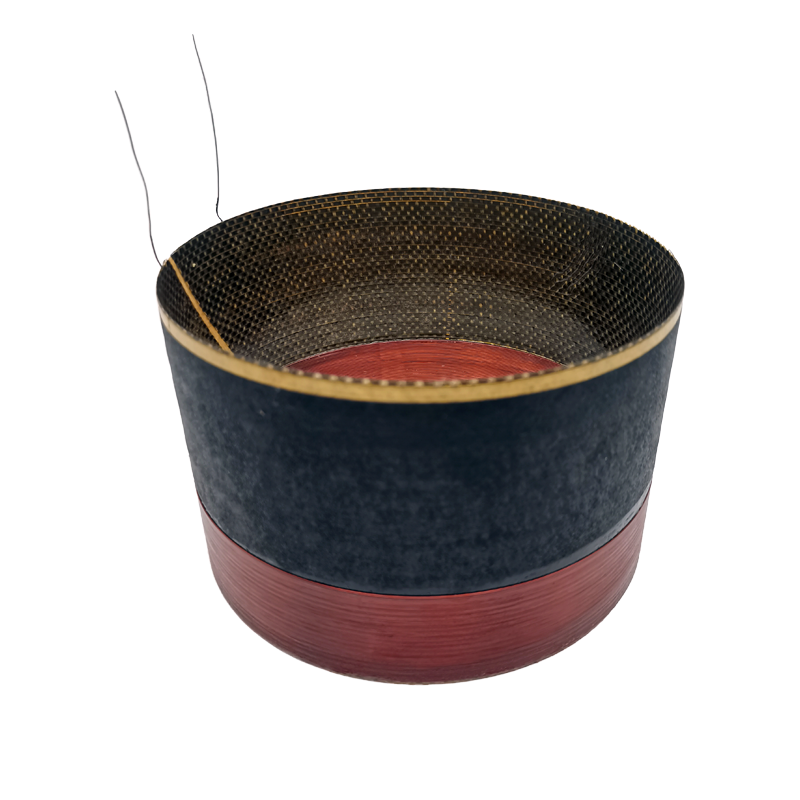

Woofer Voice Coil
DIAMETER RANGE
2.0" to 6.0" (50.8mm-152.4mm)
APPLICATION
Professional PA Speakers,High-Excursion Subwoofers.
MATERIAL OPTIONS
TIL (Kapton), Fiberglass (KSV),
In/Out Copper Windings.

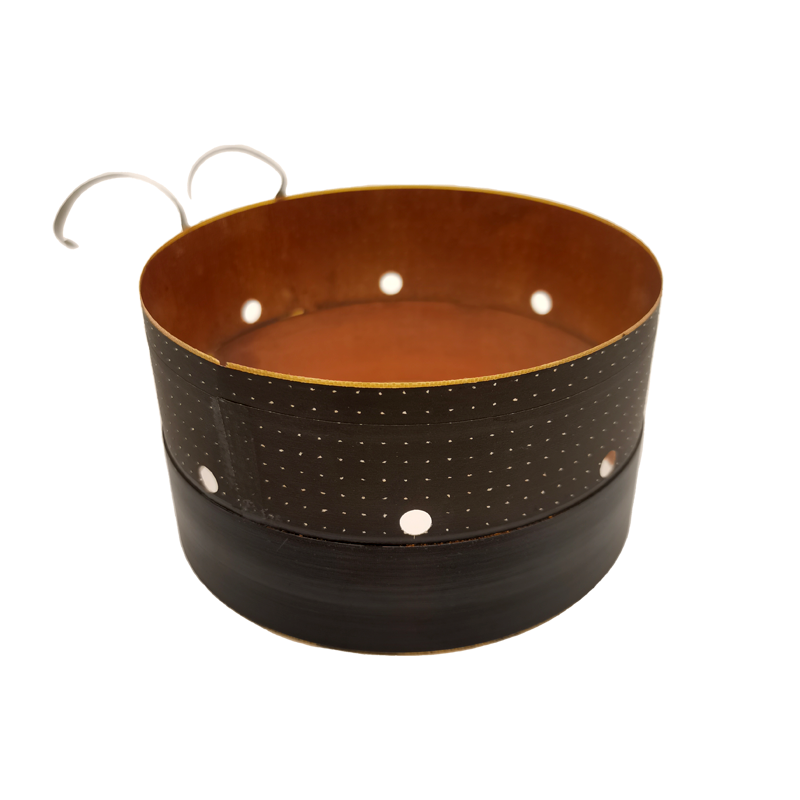

Compression Driver Coil
DIAMETER RANGE
1.0" to 4.0" (25.4mm – 100mm)
APPLICATION
High-Frequency Horns, StageMonitors, Tweeters.
MATERIAL OPTIONS
Ultra-light Polyimide,Aerospace-grade Aluminum,CCAW.
Replacement Voice Coil
DIAMETER RANGE
Built to exact global legacy dimensions
APPLICATIONAftermarket ComponentSupply, Speaker Repair Shops.
MATERIAL OPTIONS
Perfect match to original DCRtolerances and physicalalignments.
Custom Voice Coil
DIAMETER RANGE
Fully Bespoke (Built to Blueprint)
APPLICATION
Boutique Audio Development, Unique Acoustic Projects.
MATERIAL OPTIONS
Flat Ribbon Wire, High-temp SV adhesives (Resisting ≤ 300°C).
OEM Manufacturing Solutions
We help international audio brands and speaker manufacturers develop custom engineered voice coils smoothly from scratch to physical container delivery.
1
Idea & Drawing
Provide your specific TS parameters, blueprints, or ship a sample to our site.
2
Evaluation
Our engineers calculate material options, thermal dissipation, and limits.
3
Prototype
Rapid physical sample delivery engineered and dispatched within 5-7 business days.
4
Lab Testing
Strict parameter alignment checks and destructive peak-power loading verification.
5
Mass Production
High-precision multi-axis automatic winding and ISO-standard QC batch sorting.
Voice Coil Engineering Structure
An inside look at how our custom voice coils balance moving mass, thermal dissipation, and mechanical strength.
01. Former (骨架层)
High-temp Kapton (Polyimide) or Aerospace-grade Aluminum for optimal stiffness. Slotted design options are available to systematically cut distortion and eddy currents.
02. Wire (精密线圈)
Perfectly tensioned layering using pure copper for maximum current capacity, or Copper-Clad Aluminum Wire (CCAW) to reduce moving mass ($M_{ms}$) and boost high-frequency transient sensitivity.
03. Adhesive (高温固化胶)
Coated evenly with high-performance polymer resins. After programmable furnace curing, the matrix retains structural integrity at continuous thermal loads up to 250°C - 300°C.
04. Lead Wire (加固引线)
Reinforced ribbon tinsel wires securely stitched and micro-bonded to the collar layer, structurally engineered to withstand continuous heavy mechanical excursion without fatigue cracks.
How To Choose The Right Voice Coil Material
A balanced comparative matrix to optimize your acoustic responses based on thermal requirements and weight limits.
Voice Coil Manufacturing Process
Every batch passes through a repeatable, strictly monitored 7-step production cycle built on precision automation.
CNC Winding Close-up
Macro picture showing high-tension copper overlaying.
Step 02
Wire Winding
Multi-axis automated winding machines control spatial tension seamlessly to lock uniform turns with zero overlaps.
Furnace Curing Photo
Macro shot of thermostatic oven matrix lines.
Step 04
Adhesive Curing
Coils are subjected to a programmable heat-ramp oven sequence to cross-link polymer resins permanently.
Digital LCR Testing Bench
Micro-probe measurement interface close-up.
Step 05
Resistance Test
Digital resistance bridges test and log DC Resistance metrics to discard deviations instantly.
Quality Assurance System
We deploy rigid monitoring protocols at every industrial phase to secure flawless physical delivery.
Raw Material Inspection (IQC)
Incoming pure wires, CCAW, and polymer sheet stock undergo rigorous dimensional uniformity, alloy purity, and thickness audits before release to assembly lines.
100% DC Resistance Matching
We restrict the DCR variance strictly within a tight ±0.2 Ohm limit to guarantee strict electrical and output consistency across high-volume production lots.
Concentricity & Dimensional Check
Precision Go/No-Go plug gauges inspect internal and external diameters hourly, ensuring zero voice coil rubbing inside the tight speaker magnetic gaps.
Broad Industrial Applications
Our voice coils are deployed globally across diverse acoustic fields, providing sustained stability under extreme sound pressure levels.
Professional PA Systems
Engineered for high-power stadium woofers and stage line arrays. Built to handle relentless high-excursion physical strokes without thermal bottoming.
Studio & Hi-Fi Transducers
Optimized for critical near-field reference monitoring. Strict parameter matching delivers zero acoustic coloration and precise, microscopic transient responses.
Compression Drivers
Features ultra-light bobbin substrates paired with CCAW flat ribbon wire. Drastically cuts high-frequency moving mass to unleash crystal clear dB sensitivity.
Fully Customizable Parameters
We build strictly to your CAD / PDF blueprints. Review our baseline production capability envelope below.
Inner Diameter (ID)
12.0mm to 152.4mm (0.5 to 6.0 inches)
Wire Shape Matrix
Standard Round Wire, Edge-wound Flat Ribbon Wire
Former Base Substrates
Premium Polyimide Kapton (TIL), Aluminum (ASV), Glassfiber (KSV)
Winding Configuration
2-Layer, 4-Layer, Inside/Outside Balanced
Nominal Impedance
1.0, 2.0, 4.0, 8.0, 16.0 Ω or Bespoke Dual-Voice-Coil
Laser Automation
High-precision Laser Engraved Logo/Part IDs on Formers
Direct Factory Supply Chain Advantages
By integrating manufacturing agility with localized hub logistics, we mitigate purchasing risks for overseas buyers.
1
Bespoke Engineering
We don't just take orders; we audit specs. Our team evaluates thermal transfer profiles and impedance matches to elevate yield success before tooling starts.
2
Strategic Guangzhou Hub
Operating a dedicated 200㎡ professional warehouse in Guangzhou. We consolidate multiple audio component lines, enabling flexible, high-frequency, cost-effective container dispatch.
3
Strict Batch Uniformity
Leveraging multi-axis full-auto CNC winders alongside rigid LCR parameters matching. Every batch maps identically to your verified signature golden sample.
4
Flexible OEM Scaling
Whether you require a low-volume custom batch of 100 units for laboratory validation or a continuous mass run of 10,000+ pieces, our lines scale dynamically.
Frequently Asked Questions
Got questions about tolerances, customized tooling, or sample dispatching? Find fast engineering references below.
What is your standard turnaround time for custom physical prototypes?
For standard customized specifications (such as matching regular inner diameters or common wire shapes),our engineered golden samples are typical completed and ready to dispatch via DHL/FedEx within 5 to 7business days after technical drawing sign-off.
How do you manage and control your DC Resistance tolerances?
We deploy multi-axis fully automated CNC winding lines paired with real-time digital LCR bridge testing. Thisenables us to restrict batches variance strictly within a tight 0.2 Ohm threshold, ensuring identical acoustiocurves across mass shipments.
Can you integrate logo engraving or custom branding directly on the formers?
Yes, absolutely. We host high-precision automated laser marker lines to etch your custom brand logo, part IDnumbers, or batch tracking serial codes onto Polyimide (Kapton) or Aluminum substrates cleanly withoutcompromising physical integrity.
Do you support small-batch trial orders for newly developed speaker projects?
Yes, we support acoustic R&D engineering. While our standard scale lines run larger, we provide flexible low-risk trial tiers starting from 100-500 pieces specifically to help international buyers cross-validate parametersin real laboratory test benches.
Request an Engineering OEM Quote
Submit your baseline specifications below. Our electro-acoustic team will audit your requirements and return a verified pricing matrix within 24 hours.
